Infuse with Bose system : DTS-HD and Dolby True-HD ?

Hello !

I would like to purchase a Bose system with Soundbar 700 + Bass 700 + Surround Speakers.
This system is only compatible with Dolby Digital and DTS and should be compatible with 5.1

(https://www.bose.com/en_us/products/speakers/home_theater/bose-soundbar-700-package.html)

My question is : what happen If i play a movie with DTS-HD or Dolby True HD on infuse ?

I know that infuse will convert it to PCM to get a lossless result. But is the Bose system able to read PCM ? What happen if i run a 7.1 DTS-HD / Dolby True-HD ?
Someone have is setup and could help me ?

Also, why is there a codec debate on some home theater systems, if all of them could read PCM ?

Thank you !
Antoine

It supports audio return channel (eARC) which supports 5.1 PCM. Regular ARC supports 2.0 PCM. Your TV will also need to support eARC too.

If your TV doesn’t support eARC then you’ll have to transcode everything to Dolby 5.1 in your Apple TV settings.

Thank you for your reply !

My Tv (Philips 55POS9002) doesn’t have eARC and the Bose soundbar only has 1 HDMI … do you know if there is another way to receive HD audio ?

eARC and ARC are two of the same but different. You’re confusing eARC which is part of the HDMI 2.1 specification that allows lossless audio over ARC.

“Regular” ARC can support DD+ 5.1 (including ATMOS encoding for DD+) as well as DTS as both are lossy formats. As long as OPs TV supports ARC they should get the lossy multi channel playback.

The only way to receive HD audio is through a sound bar that has true HDMI inputs or through a receiver. I can’t comment on what soundbars support multichannel PCM as I use a receiver in my setup.

This is a bit off topic, but I’d highly, highly, HIGHLY advise against that (or any) Bose setup. I just took a look, and it looks like you’d be spending $1,800 for that setup, which is a horrendous rip off for the quality Bose offers.

You could set up a phenomenal, near theater quality 7.1 or Atmos setup for less than that, and it would make the Bose system look like a toy.

I’d recommend poking around AVS Forum and the buying guides at the HomeTheater sub on Reddit as places to get started.

Remember, friends don’t let friends buy Bose :slight_smile:

Agreed. You could get a nice Sony receiver and a 5.1.2 speaker setup for that price. Alternately you could also get one of LGs atmos soundbar setups which from reviews seem not too bad.

Hey guys,

Thanks for your replies.
I also ordered a Samsung n950 but not yet received it. (I’ll have a try)

By the way I’m not interested in complex home theater with AV receiver, big speakers etc.

Bose apparence is pretty great and they are the only one with white design. (It’s like apple VS other brands :slight_smile: )

Finally the soundbar 700 has an eARC HDMI while the N950 doesn’t. If I understand well, when my TV will be able to do eARC (maybe with firmeware update as this is a feature that could be added to HDMI 2.0), I’ll be able to play HD audio with my setup ? (Apple tv 4K / infuse - Philips 55POS9002 - Bose)

Regards
Antoine

Only if the sound bar supports multichannel PCM. I’d recommend taking this over to AVS Forum as these guys will have better knowledge when it comes to AV specs and requirements

That’s understandable if you don’t want a complex setup, but that Bose soundbar and speakers are a GIGANTIC waste of money. Seriously, Bose is straight up ripping people off with those products. You’re being conned if you spend anything close to that money on them.

If you really don’t want to invest in a surround setup, just get a decent soundbar for a few hundred dollars. Also, don’t worry about eARC on any of this. You will never, ever, ever notice the difference between lossless and lossy audio on a soundbar setup.

I’ve had full 5.1/7.1, and up until recently 5.2.2 for 15 years or so. Finally got sick of the “upgraditis”, wires, receivers, speakers everywhere - I fell out of love with it all. I bought a bose soundbar 700, sub 700 and the rears. It is absolutely excellent, and I couldn’t recommend it enough. I tried the sonos equivelant, and was impressed, but after hearing the bose in a relatives house, I returned it after about two months and got the Bose, no regrets.
My room is a decent size, 21x16, with tv centered on the long wall, soundbar wall mounted 4-5 inches under it, sub over a few feet to the left, and rears at approx. 6ft wall mounted. Ok, it doesn’t have HD audio, but the dolby digital 5.1 and dts, and pseudo surround from 2 channel sources is fantastic. I would certainly not listen to the guy completely dumping on it, seems to be all shouting and feelings! You can buy Bose and have a 60 day change of mind.
Yes it’s expensive, but it is simple, wireless, looks great, and most importantly sounds amazing, very powerful sub, better than Sonos sub IMO. Also Airplay 2 coming soon if that’s of interest to you. Remember a lot of people spout off populist negative comments about Bose, Sonos, without ever having the product or listening to it in their own room (I was guilty of this type of thing for years).
Any questions, I’d be happy to answer.
Just for balance!

Hello Flash,

Thank you for your comment !

To be honest i already purchased the Bose Setup 1 hour after my comment :slight_smile:

At the moment i’m really glad of it, but as i’m not an expert and i don’t have any other comparaison (with complete Atmos or 7.1/5.1 setups with AV Receiver etc) i can’t really know if bose is the best choice.

By the way, as the soundbar 700 has eARC, do you know if this will be able to read HD audio with PCM 5.1 (when TV will be able to pass it with eARC update ?)

Hi, It’s technically possible in the future. The Bose 700 has eArc, so if your TV also does, Bose would have to software update to allow 5.1 pcm/HD audio. At the moment you need to make sure that the Apple TV is set to “Dolby Digital 5.1”, not stereo, and not "best available/change format. Did you get the base module and rears?

Yes i took them.

I don’t understand : “Bose would have to software update to allow 5.1 pcm/HD audio.”
Why would they need to do an update ?

Apologies, they (BOSE) would need to do an update to support the Dolby True HD & DTS HD master audio codecs through eARC.

With regard to infuse taking those codecs from your hard drive and converting to PCM, then passing through to the soundbar as lossless… I’m not sure, I think currently it down coverts PCM 5.1 to 2.0, I THINK, therefore some sort of update would be required, for it to output PCM 5.1. I stand to be corrected.

i found some topics on bose forums which says that PCM 5.1 is supported

I’ve done a little bit of reading on the bose communities and it appears that it will take a 5.1 pcm uncompressed signal. I’m going to test it tonight, will have to rewire as I’m using optical but will connect the soundbar to the hdmi arc. EARC isn’t required for that is it?

For standard audio (not HD) it’s OK with ARC

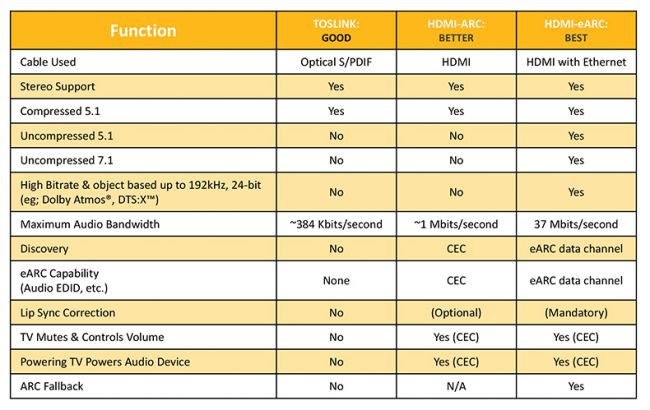

Check the attachement


eARC is required for PCM audio above 5.1. It’s part of the HDMI 2.1 spec however some HDMI 2.0 receivers are getting the update. You MIGHT get an update for your TV if it’s relatively new and it’s a top of the line flagship model. I have a 2 year old LG OLED and it hasn’t and probably won’t get eARC support. It’s probably best to contact your TV manufacturer as they will be able to give you better answer.

Hello Jarvis !

Thank you for your answer, my TV is a Philips 55POS9002 (a end 2017 model) which is a high-end model on the Philips catalog.
Btw i did sent yesterday an email to the customer service to have more details !

Regards,
Antoine
